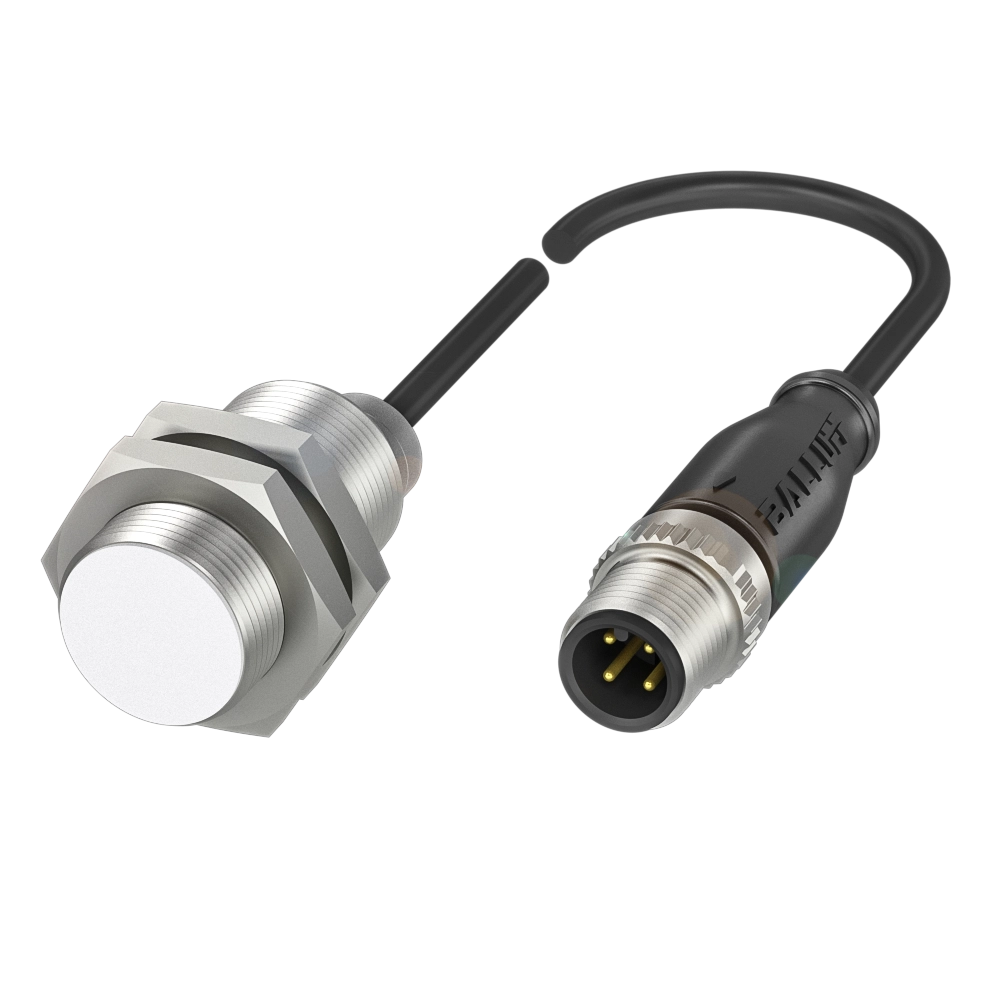

Similar Illustration

BAW005E

Name: BAW005E
Brand: Balluff
SKU: BAW005E
Price: 1725.23 CNY
Availability: OutOfStock

BAW M18ME-ICC50B-BP00,5-GS04-003

Inductive distance sensors

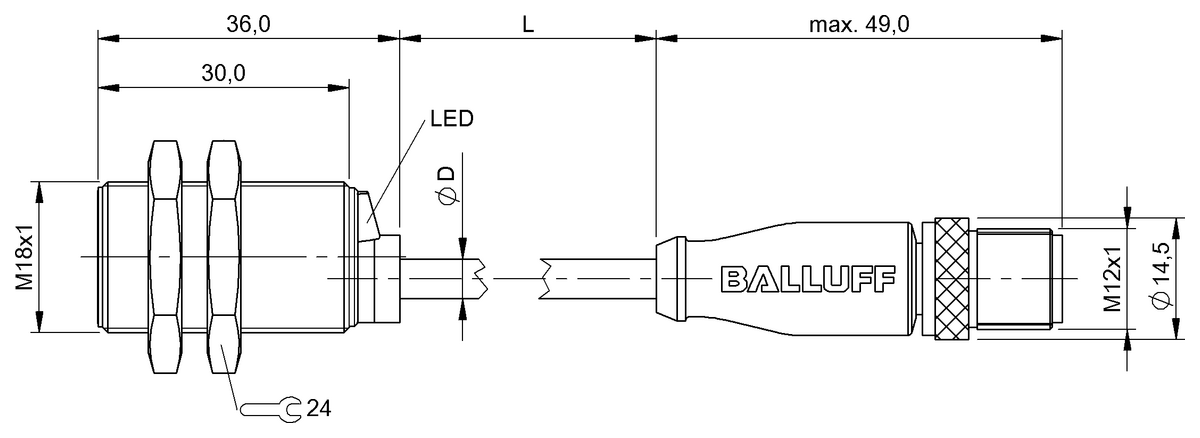

Dimension

Ø 18 x 36 mm

Style Housing

M18x1

Installation

for flush mounting

Range

1...5 mm

Analog output

Analog, current 4…20 mA

Product Features

Do you have any questions about the product?

This product page contains information for China – Balluff Automation (Shanghai) Co., Ltd

		Alternative	Further alternative

	BAW005E BAW M18ME-ICC50B-BP00,5-GS04-003 1,725.23 CNY	BAW003U BAW M18ME-ICC50B-BP00,2-GS04 1,564.05 CNY	BAW003T BAW M18ME-UAC48B-BP01,5-GS04-003 1,725.23 CNY
Dimension	Ø 18 x 36 mm	Ø 18 x 36 mm	Ø 18 x 36 mm
Style Housing	M18x1	M18x1	M18x1
Installation	for flush mounting	for flush mounting	for flush mounting
Range	1...5 mm	1...5 mm	1...4.8 mm
Analog output	Analog, current 4…20 mA	Analog, current 4…20 mA	Analog, voltage 0...10 V
Output characteristic	falling on approach	falling on approach	falling on approach
Limit frequency –3 dB	500 Hz	500 Hz	500 Hz
Repeat accuracy per BWN	±8 µm	±8 µm	±8 µm
Non-linearity max.	±120 µm	±120 µm	±120 µm
Housing material	Brass, nickel-plated	Brass, nickel-plated	Brass, nickel-plated
Material sensing surface	PBT	PBT	PBT
Connection	Cable with connector, M12x1-Male, 3-pin, 0.50 m, PUR	Cable with connector, M12x1-Male, 3-pin, 0.20 m, PUR	Cable with connector, M12x1-Male, 3-pin, 1.50 m, PUR
Operating voltage Ub	15...30 VDC	15...30 VDC	15...30 VDC
Ambient temperature	-10...70 °C	-10...70 °C	-10...70 °C
IP rating	IP67	IP67	IP67
Approval/Conformity	CE UKCA cULus WEEE	CE UKCA cULus WEEE	CE UKCA cULus WEEE
