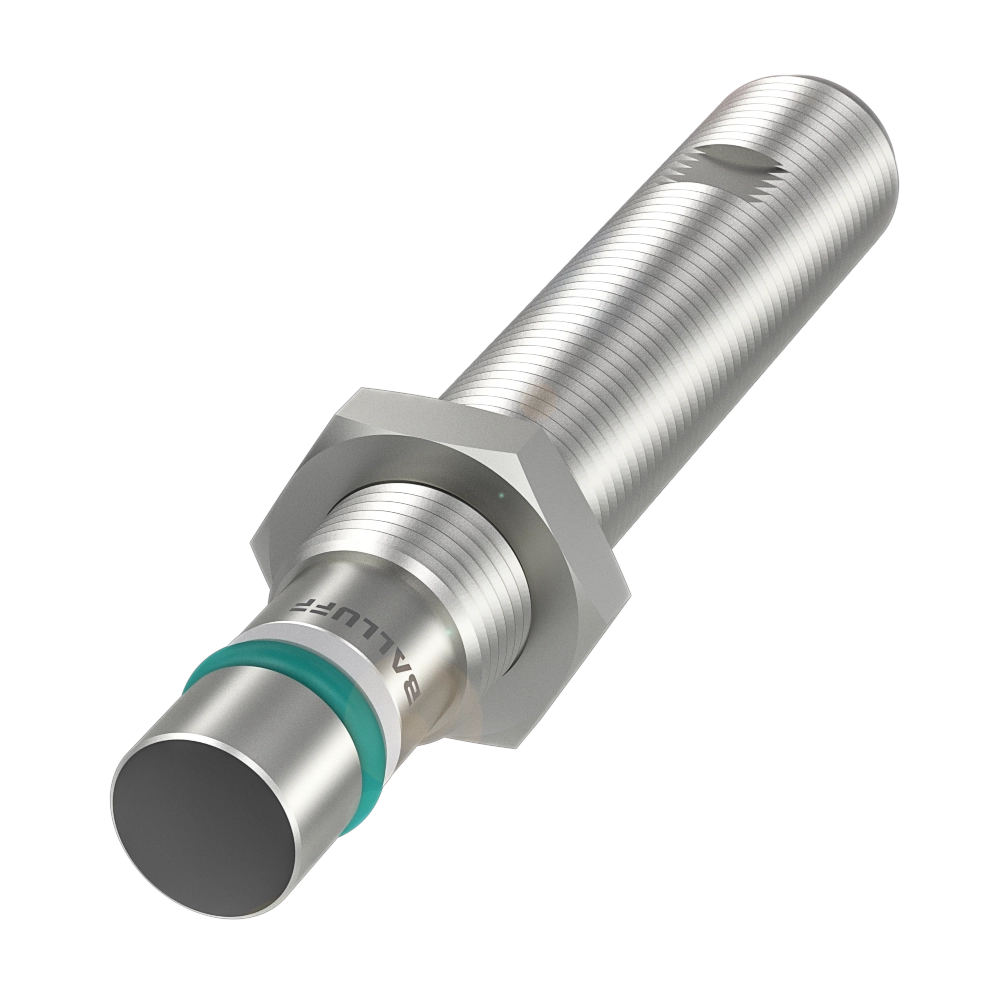

Cylindrical version for flush installation

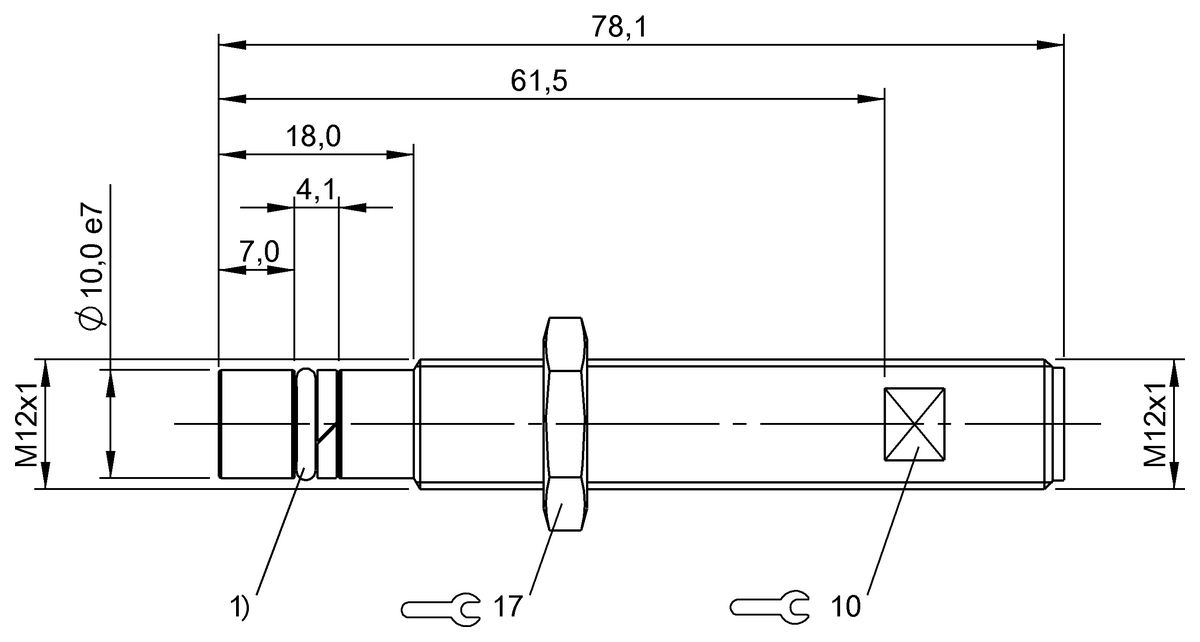

Dimension
Ø 12 x 78 mm
Style Housing
M12x1
Installation
for flush mounting
Range
0.5...2 mm
Analog output
Analog, voltage 0...10 V
Do you have any questions about the product?
This product page contains information for China – Balluff Automation (Shanghai) Co., Ltd
Alternative products
|
|
Alternative
|
Not available in Webshop
Further alternative
|
|
|
|
|
|
|
|
BAW Z08EO-UAD20B-S04G-H11
4,133.25 CNY
List price
|
BHS B135V-PSD25-S04-003
1,444.28 CNY
List price
|
BHS B135V-PSD15-NEX-S04
1,426.43 CNY
List price
|
|
| Dimension | Ø 12 x 78 mm | Ø 12 x 78 mm | Ø 12 x 78 mm |
|---|---|---|---|
| Style Housing | M12x1 | M12x1 | M12x1 |
| Installation | for flush mounting | for flush mounting | for flush mounting |
| Range | 0.5...2 mm | 2.5 mm | 1.5 mm |
| Analog output | Analog, voltage 0...10 V | - | - |
| Output characteristic | falling on approach | - | - |
| Limit frequency –3 dB | 1000 Hz | - | - |
| Repeat accuracy per BWN | ±8 µm | - | - |
| Non-linearity max. | ±45 µm | - | - |
| Housing material | Stainless steel | Stainless steel | Stainless steel |
| Material sensing surface | Ceramic | Ceramic | Ceramic |
| Connection | Connector, M12x1-Male, 3-pin | Connector, M12x1-Male, 4-pin | Connector, M12x1-Male, 4-pin |
| Operating voltage Ub | 15...30 VDC | 10...30 VDC | 10...30 VDC |
| Ambient temperature | -25...85 °C | -25...90 °C | -25...100 °C |
| Pressure rating max. | 500 bar | 500 bar | 500 bar |
| IP rating | IP68 | IP68 | IP68 |
| Approval/Conformity |
CE UKCA cULus WEEE |
CE UKCA cULus WEEE |
CE ATEX IECEx WEEE ULus |
