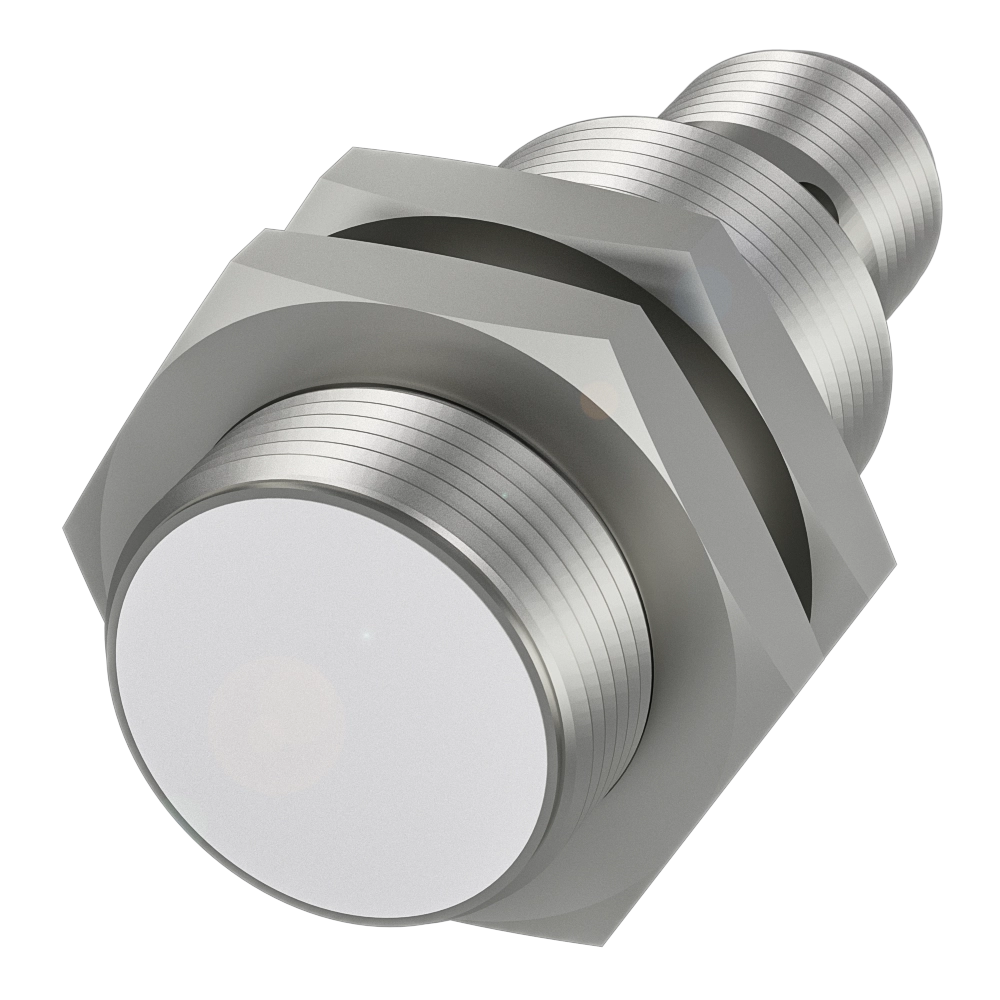

Similar Illustration

BAW0026

Name: BAW0026
Brand: Balluff
SKU: BAW0026
Price: 1725.23 CNY
Availability: OutOfStock

BAW M18ME-UAE50B-S04G-K

Cylindrical version with metric thread

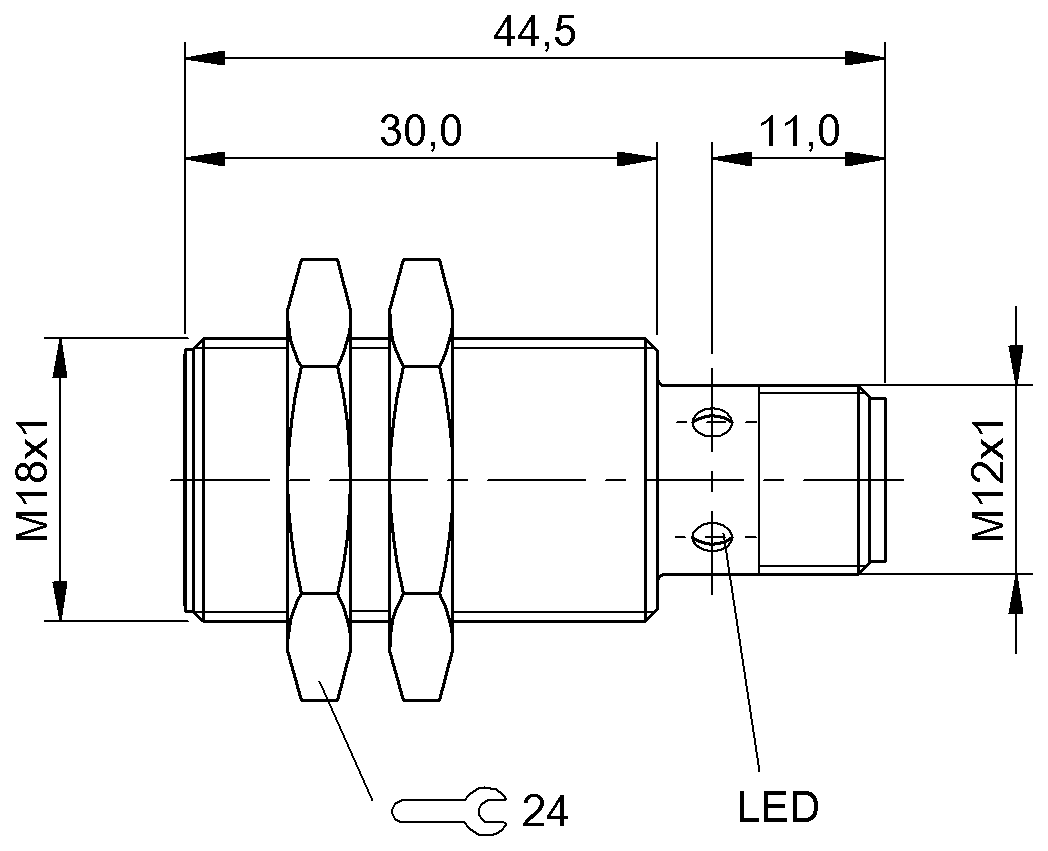

Dimension

Ø 18 x 44.5 mm

Style Housing

M18x1

Installation

for flush mounting

Range

1...5 mm

Analog output

Analog, voltage 0…10 V
Analog, temperature

Do you have any questions about the product?

		Alternative	Further alternative

	BAW0026 BAW M18ME-UAE50B-S04G-K 1,725.23 CNY	BAW0025 BAW M18ME-UAC50B-S04G 1,404.68 CNY	BAW001U BAW M18ME-ICC50B-S04G 1,404.68 CNY
Dimension	Ø 18 x 44.5 mm	Ø 18 x 44.5 mm	Ø 18 x 44.5 mm
Style Housing	M18x1	M18x1	M18x1
Installation	for flush mounting	for flush mounting	for flush mounting
Range	1...5 mm	1...5 mm	1...5 mm
Analog output	Analog, voltage 0…10 V Analog, temperature	Analog, voltage 0...10 V	Analog, current 4…20 mA
Output characteristic	falling on approach	falling on approach	falling on approach
Limit frequency –3 dB	500 Hz	500 Hz	500 Hz
Repeat accuracy per BWN	±8 µm	±8 µm	±8 µm
Non-linearity max.	±120 µm	±120 µm	±120 µm
Housing material	Brass, nickel-plated	Brass, nickel-plated	Brass, nickel-plated
Material sensing surface	PBT	PBT	PBT
Connection	Connector, M12x1-Male, 4-pin	Connector, M12x1-Male, 3-pin	Connector, M12x1-Male, 3-pin
Operating voltage Ub	21.6...26.4 VDC	15...30 VDC	10...30 VDC
Ambient temperature	-10...70 °C	-10...70 °C	-10...70 °C
IP rating	IP67	IP67	IP67
Approval/Conformity	CE UKCA cULus WEEE	CE UKCA cULus WEEE	CE UKCA cULus WEEE
