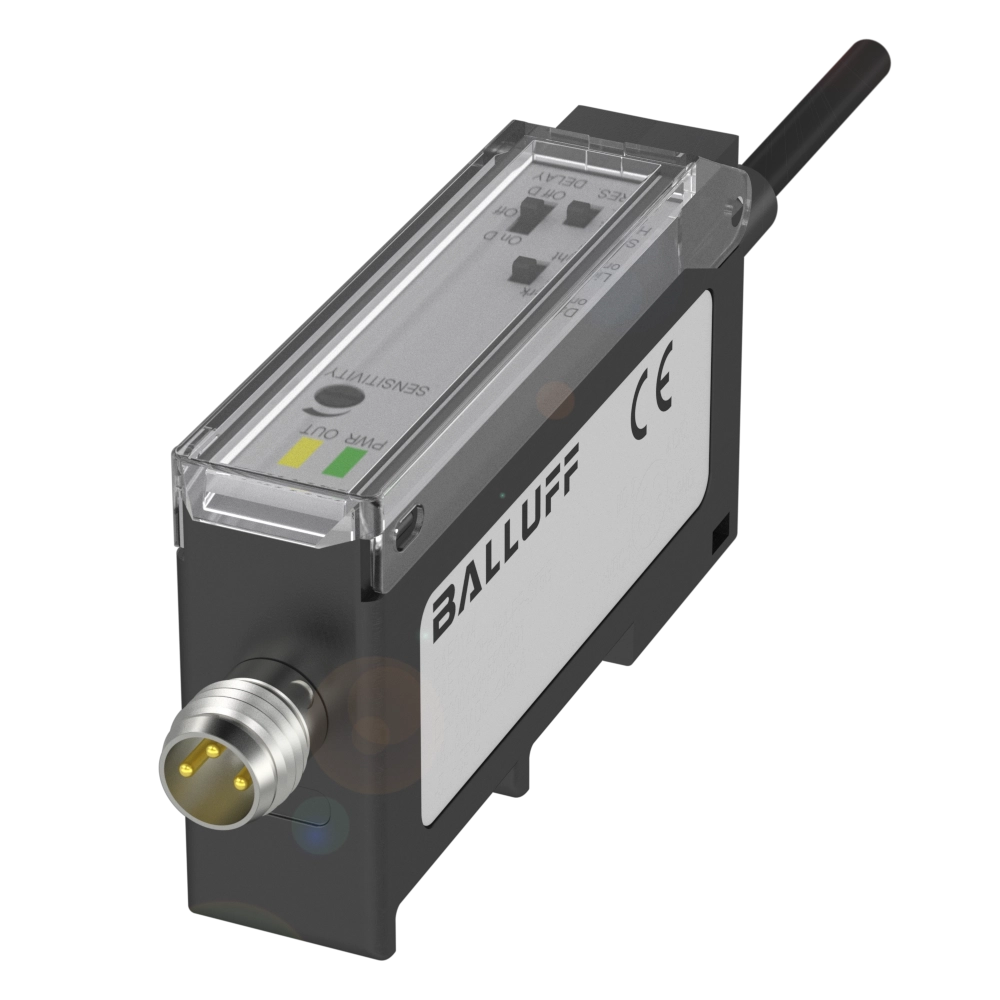

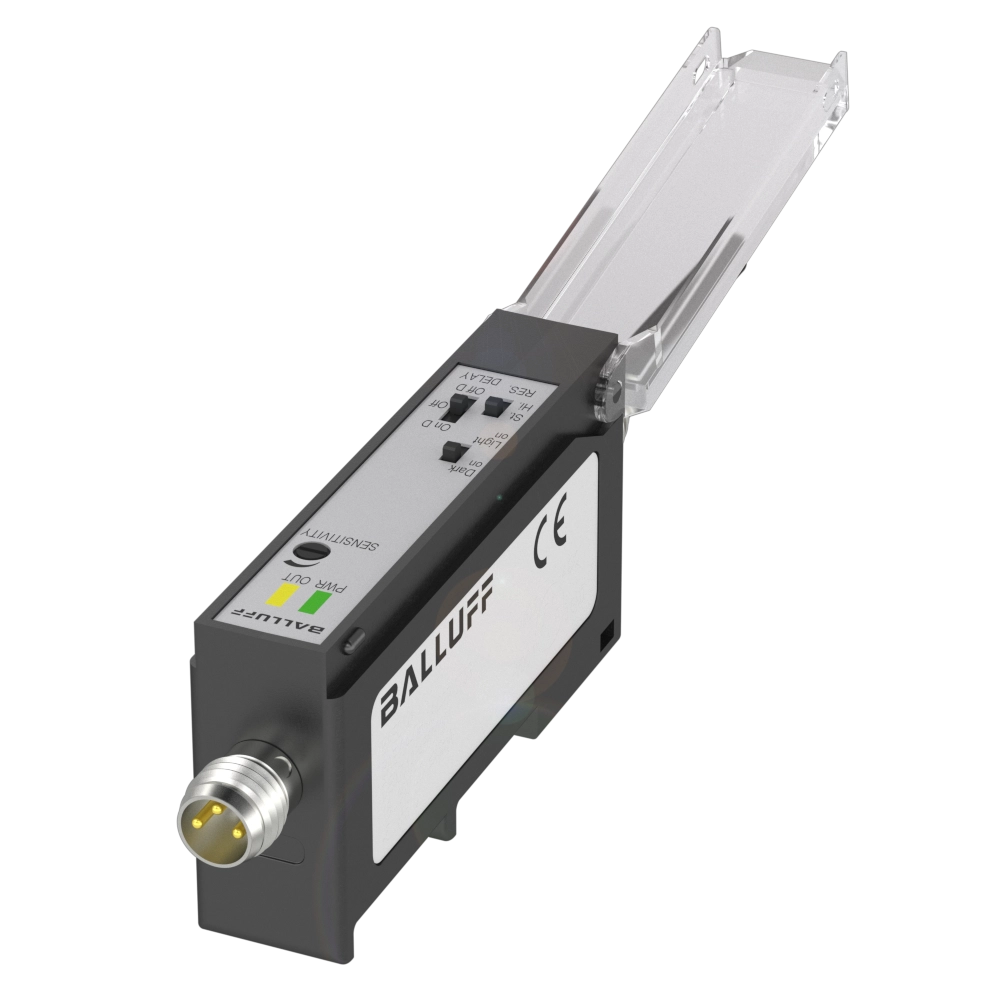

Amplifiers for optical sensor heads
Series
SA-OH
Dimension
13.5 x 32.9 x 67 mm
Interface
PNP normally open/normally closed (NO/NC)
Display
LED green: Power
Error - LED red
Output function- LED yellow
Error - LED red
Output function- LED yellow
Setting
Sensitivity (Sn)
Light-on/dark-on
On-/off delay
Resolution normal/high
Light-on/dark-on
On-/off delay
Resolution normal/high
Do you have any questions about the product?
This product page contains information for China – Balluff Automation (Shanghai) Co., Ltd
Alternative products
|
|
Alternative
|
|
|
|
|
|
|
BAE SA-OH-064-PP-DP02
1,404.68 CNY
List price
|
BAE SA-OH-063-PP-DP02
1,404.68 CNY
List price
|
|
| Series | SA-OH | SA-OH |
|---|---|---|
| Dimension | 13.5 x 32.9 x 67 mm | 13.5 x 32.9 x 67 mm |
| Interface | PNP normally open/normally closed (NO/NC) | PNP normally open/normally closed (NO/NC) |
| Display |
LED green: Power Error - LED red Output function- LED yellow |
LED green: Power Error - LED red Output function- LED yellow |
| Setting |
Sensitivity (Sn) Light-on/dark-on On-/off delay Resolution normal/high |
Teach Sn Light-on/dark-on On-/off delay |
| Adjuster |
Slide switch 3 positions Slide switch 2 positions (2x) 3-turn potentiometer |
Slide switch 3 positions Slide switch 2 positions (2x) Key (2x) |
| Connection | Cable, 2 m, PVC | Cable, 2 m, PVC |
| Housing material |
PC PA 12 |
PC PA 12 |
| Operating voltage Ub | 15...30 VDC | 15...30 VDC |
| Approval/Conformity |
CE UKCA WEEE |
CE UKCA WEEE |
