Similar Illustration
Only CAD model download is supported
Only CAD model download is supported

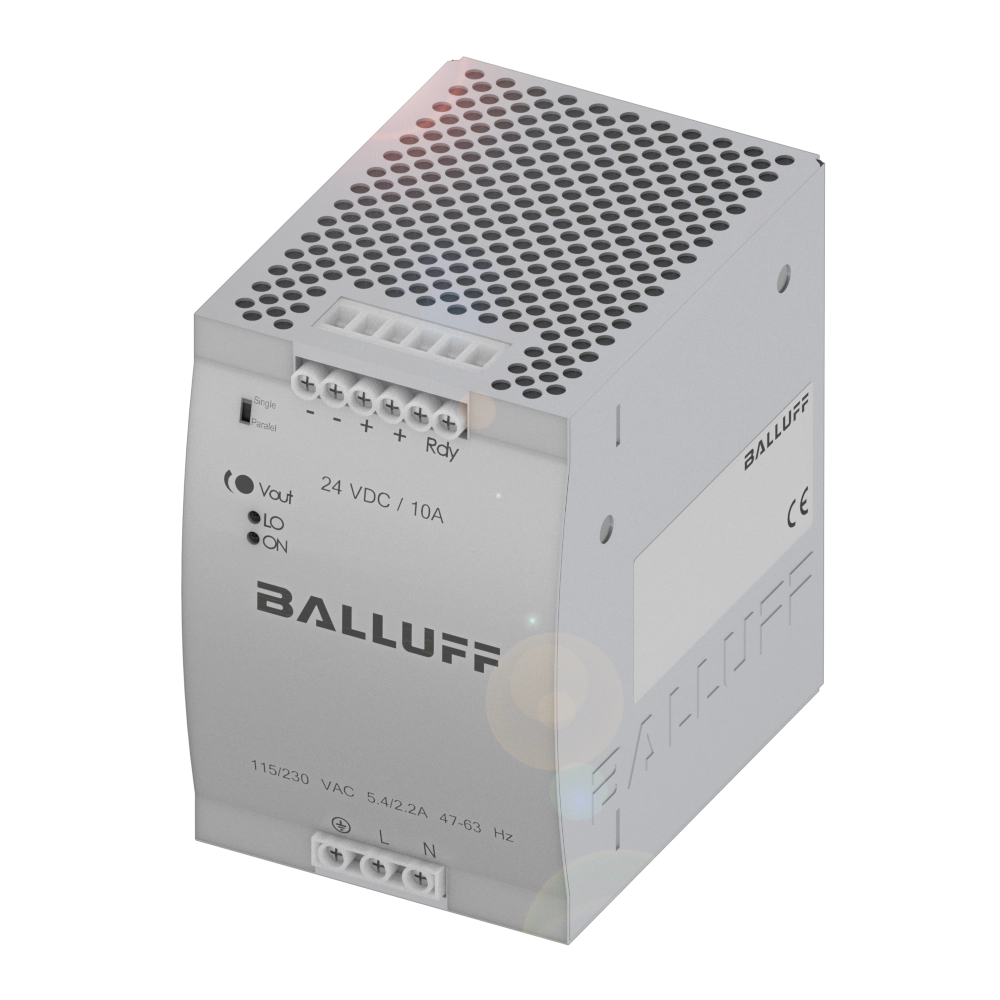

Power supplies for the control cabinet

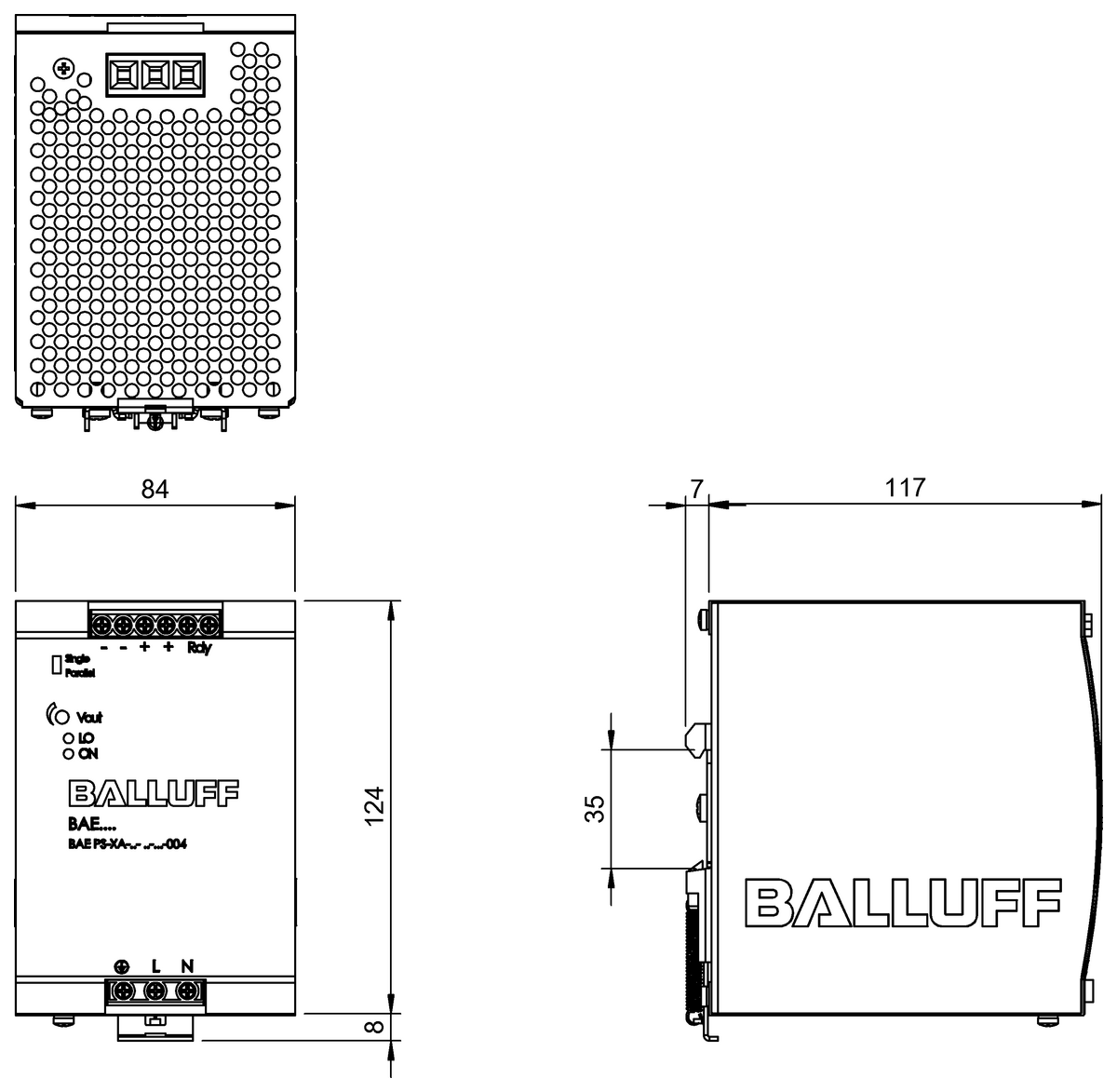

Dimension
83.5 x 124.5 x 116.6 mm
Version
DIN rail
Mounting part
DIN rail mount
Housing material
Metal
Connection
Terminal, 0.25...4 mm²
Recommended successor products
BAE0113
Power supplies for the control cabinet
BAE PS-XA-1W-24-100-018
Estimated availability
How does the alternative product differ from the discontinued one?
Do you have any questions about the product?
Get in touch with us.
This product page contains information for China – Balluff Automation (Shanghai) Co., Ltd
Alternative products
|
Soon no longer available
|
Recommended alternative
|
|
|
|
|
| BAE PS-XA-1W-24-100-004 | BAE PS-XA-1W-24-100-018 | |
|
-
List price
|
-
List price
|
|
| Dimension | 83.5 x 124.5 x 116.6 mm | 60 x 123.6 x 117.6 mm |
|---|---|---|
| Version | DIN rail | DIN rail |
| Mounting part | DIN rail mount | DIN rail mount |
| Housing material | Metal | Metal |
| Connection | Terminal, 0.25...4 mm² | Terminal, 0.25...4 mm² |
| Input voltage | 115/230 V AC automatic selection | 100…240 V AC, 1-phase |
| Rated output voltage DC | 24 V | 24 V |
| Rated output current | 10 A | 10 A |
| IP rating | IP20 | IP20 |
| Approval/Conformity |
CE CCC cULus WEEE |
CE cURus cULus WEEE |
| Ambient temperature | -40...70 °C | -20...70 °C |
Only CAD model download is supported
