New magnetostrictive sensor generation BTL
With EtherCAT interface
Magnetostrictive sensors measure position and speed with high reliability and precision and are available with the EtherCAT interface. When space is at a premium, this latest generation of BTL (magnetostrictive) position measuring systems from Balluff really come into their own, with particularly compact mini-rod or profile designs that are robust and easy to install.
The right sensor solution for a wide range of applications
The latest generation of BTL magnetostrictive position measuring systems offers a customised combination of features depending on the product version. We differentiate between two performance classes, allowing you to easily configure the right solution for your application and budget.
Sensors in performance class B1 score points with basic functions and an excellent price-performance ratio, while position measuring systems in performance class C1 excel in demanding applications that call for maximum performance.
For the new BTL generation, this means 1 or 2 connectors, with or without LED, and up to 75° or 85° ambient temperature.
Mini-rod versions in performance classes B and C
Profile versions (round and square) in performance classes B and C
The optimized BTL profile with EtherCAT interface
Keep a firm grasp on all movements
Travel movements at the blow station are under control with Balluff BTL magnetostrictive linear position sensors, even if there are vibrations. The high-precision measurement systems have an EtherCAT interface. Because of their contact-free and wear-free measuring principle, they contribute to long machine running times.
The new BTL rod with EtherCAT interface

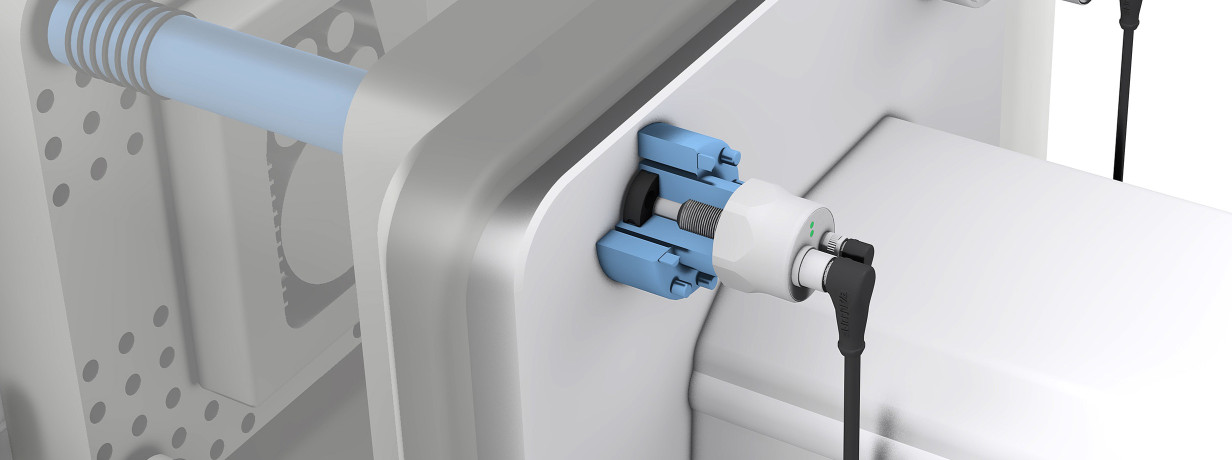

Ensure gentle mold closing
With the help of a high-precision magnetostrictive linear position sensor from Balluff you can precisely monitor the closing motion of the platen. A gentle mold closure reduces wear and extends your mold's useful life.
Your advantages at a glance
EtherCAT interface: fast and efficient data transmission
Profile and mini-rod design in two performance classes: customisable solutions
Robust, compact housing: reliability in the smallest installation space
Regional production possible ("local for local"): high product availability
Magnetostrictive linear position sensors BTL in profile housing – block-style
Magnetostrictive linear position sensors BTL in profile housing – round profile
Magnetostrictive linear position sensors BTL in rod housing
BTL magnetostrictive position measuring systems in rod housing
Magnetostrictive linear position sensors BTL in profile housing – block-style
- Style
- Profile series
- Mounting part
- Mounting clamps
- Housing material
- Aluminium, Anodized
- Magnets, number max.
- 1
- Connection
- Connector, M8x1, 4-pin
- Connection 1
- M8x1, 4-pin
- Connection 2
- M12x1, 4-pin, D-coded
- Interface
- EtherCAT ETG.1000.4, ETG.1000.6
- Measuring range
- 500 mm
- Sampling frequency max.
- 2000 Hz
- Non-linearity max.
- ±50 µm
- Repeat accuracy
- ≤ ± 10 µm
- Operating voltage Ub
- 18...30 VDC
- Ambient temperature
- -25...85 °C
- IP rating
- IP67
- Approval/Conformity
-
CE
UKCA
WEEE
cULus
Magnetostrictive linear position sensors BTL in profile housing – round profile
- Style
- Profile series
- Mounting part
- Mounting clamps
- Housing material
- Aluminium, Anodized
- Magnets, number max.
- 1
- Connection
- Connector, M12x1, 8-pin
- Interface
- EtherCAT ETG.1000.4, ETG.1000.6
- Measuring range
- 500 mm
- Sampling frequency max.
- 2000 Hz
- Non-linearity max.
- ±200 µm
- Repeat accuracy
- ≤ ± 10 µm
- Operating voltage Ub
- 18...30 VDC
- Ambient temperature
- -25...75 °C
- IP rating
- IP67
- Approval/Conformity
-
CE
WEEE
UKCA
cULus
Magnetostrictive linear position sensors BTL in rod housing
- Style
- Rod series
- Mounting part
- Threaded flange M18x1.5
- Magnets, number max.
- 1
- Connection
- Connector, M12x1, 8-pin
- Interface
- EtherCAT ETG.1000.4, ETG.1000.6
- Measuring range
- 500 mm
- Sampling frequency max.
- 2000 Hz
- Non-linearity max.
- ±200 µm
- Repeat accuracy
- ≤ ± 10 µm
- Operating voltage Ub
- 18...30 VDC
- Ambient temperature
- -40...75 °C
- IP rating
-
IP67
IP69K - Approval/Conformity
-
CE
cULus
UKCA
WEEE
BTL magnetostrictive position measuring systems in rod housing
- Style
- Rod series
- Mounting part
- Threaded flange M18x1.5
- Magnets, number max.
- 1
- Connection
- Connector, M8x1, 4-pin
- Connection 1
- M8x1, 4-pin
- Connection 2
- M12x1, 4-pin, D-coded
- Interface
- EtherCAT ETG.1000.4, ETG.1000.6
- Measuring range
- 500 mm
- Sampling frequency max.
- 2000 Hz
- Non-linearity max.
- ±50 µm
- Repeat accuracy
- ≤ ± 10 µm
- Operating voltage Ub
- 18...30 VDC
- Ambient temperature
- -40...85 °C
- IP rating
-
IP67
IP69K - Approval/Conformity
-
CE
cULus
UKCA
WEEE
