BIS01E9

BIS U-4A7-082-21C-07-S4

Reader with integrated evaluation unit for the UHF range (860...960 MHz)

Product group
UHF (860...930 MHz)
Working frequency
920.5…924.5 MHz
Radio license
China

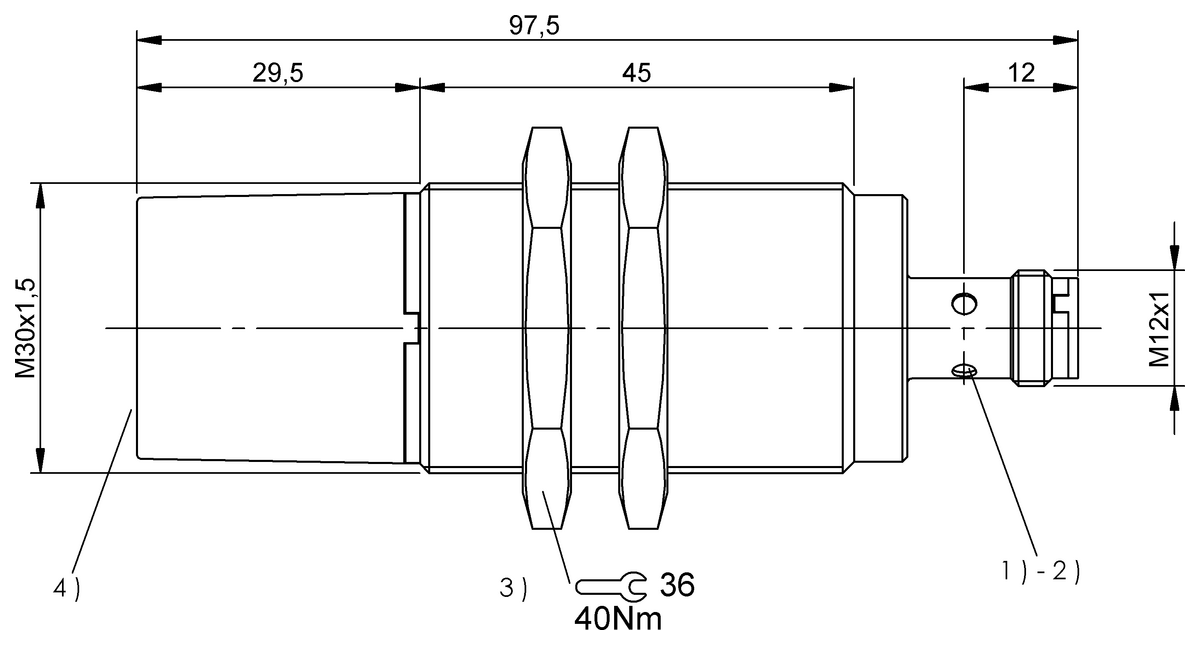

Dimension
Ø 30 x 98 mm
Antenna type
Planar
Do you have any questions about the product?

Quantity scale

Contact request
Key features
Product group
UHF (860...930 MHz)
Working frequency
920.5…924.5 MHz
Radio license
China
Dimension
Ø 30 x 98 mm
Antenna type
Planar
Polarization
circular
Output power adjustable
-7 dBm…+18 dBm (0.2 mW…64 mW)
Connection
M12x1-Male, 4-pin, A-coded
Housing material
1.4404 stainless steel
Interface
RS485 1.1
Operating voltage Ub
19.2...29.8 VDC LPS Class 2
Ambient temperature
0...70 °C
IP rating
IP68
IP69K
Approval/Conformity
SRRC
WEEE
Ecolab
cULus
Classifications
ECLASS 10.1
27-28-04-01
ECLASS 11.0
27-28-04-01
ECLASS 12.0
27-28-04-01
ECLASS 13.0
27-28-04-01
ECLASS 14.0
27-28-04-01
ECLASS 4.1
27-28-04-01
ECLASS 5.1.4
27-28-04-01
ECLASS 6.2
27-28-04-01
ECLASS 8.1
27-28-04-01
ECLASS 9.0
27-28-04-01
ECLASS 9.1
27-28-04-01
ETIM 7.0
EC002998
ETIM 8.0
EC002998
UNSPSC 11
43211710
UNSPSC 7.0901
43211710
