Quantity scale
Contact request

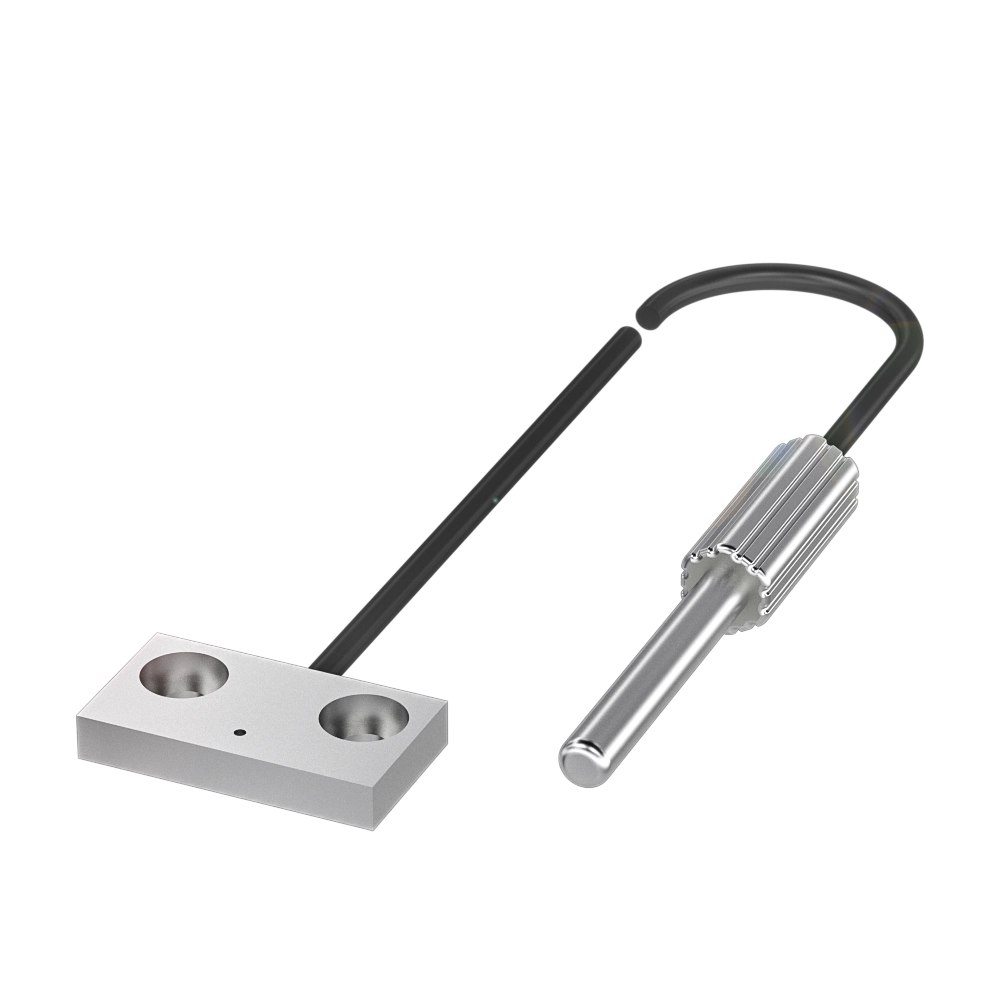

Key features
Version
0.5 mm, 90°
Use
for fiber optic base units BFB

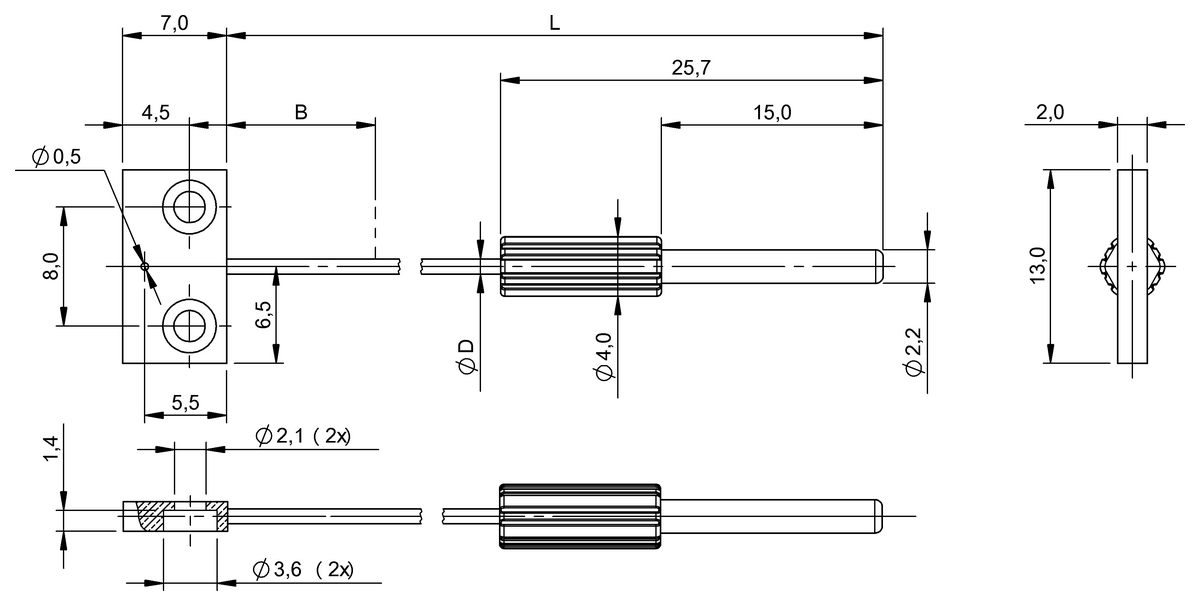

Dimension
2 x 13 mm
Fiber type material
PMMA
Cable length L
2.00 m
Material jacket
PE
Ambient temperature
-40...70 °C
Material
Brass nickel-plated
Active surface, fibers
Ø 0.5 mm
Active surface, fiber arrangement
Single fiber
IP rating
IP65
Classifications
ECLASS 10.1
27-27-36-06
ECLASS 11.0
27-27-36-06
ECLASS 12.0
27-27-36-06
ECLASS 13.0
27-27-36-06
ECLASS 14.0
27-27-36-06
ECLASS 4.1
27-27-90-03
ECLASS 5.1.4
27-27-92-08
ECLASS 6.2
27-27-92-08
ECLASS 8.1
27-27-92-08
ECLASS 9.0
27-27-36-06
ECLASS 9.1
27-27-36-06
ETIM 4.0
EC002651
ETIM 5.0
EC002651
ETIM 6.0
EC002651
ETIM 7.0
EC002651
ETIM 8.0
EC002651
UNSPSC 11
41112103
UNSPSC 7.0901
41112103
