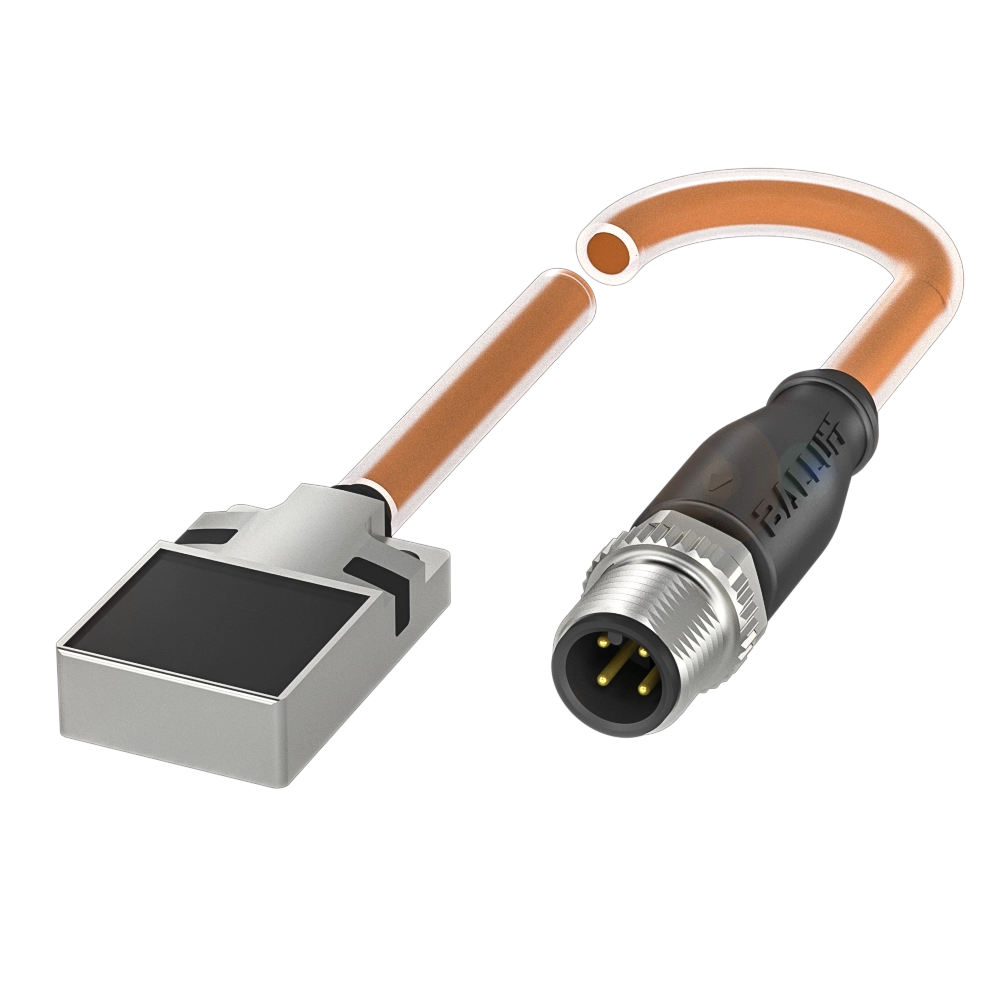

Cubic version for magnetic-field-resistant applications
Dimension
32 x 20 x 8 mm
Style Housing
32x20x8
Installation
for flush mounting
Range
7 mm
Switching output
PNP normally open (NO)
Do you have any questions about the product?
This product page contains information for China – Balluff Automation (Shanghai) Co., Ltd
Alternative products
|
|
Alternative
|
|
|
|
|
|
|
BES R01ZC-PSC70B-BZ00,2-GS04-108
1,334.93 CNY
List price
|
BES R01ZC-PSC70B-BZ00,2-GS04-110
1,574.93 CNY
List price
|
|
| Dimension | 32 x 20 x 8 mm | 32 x 20 x 8 mm |
|---|---|---|
| Style Housing | 32x20x8 | 32x20x8 |
| Installation | for flush mounting | for flush mounting |
| Range | 7 mm | 7 mm |
| Switching output | PNP normally open (NO) | PNP normally open (NO) |
| Switching frequency | 150 Hz | 150 Hz |
| Housing material | Zinc, Die casting, partly coated | Zinc, Die casting |
| Material sensing surface | ceramic coated | ceramic coated |
| Connection | Cable with connector, M12x1-Male, 4-pin, 0.20 m, TPU | Cable with connector, M12x1-Male, 4-pin, 0.20 m, TPU |
| Operating voltage Ub | 10...30 VDC | 10...30 VDC |
| Ambient temperature | -25...70 °C | -25...70 °C |
| IP rating | IP67 | IP67 |
| Approval/Conformity |
CE UKCA cULus WEEE |
CE UKCA cULus WEEE |
