Similar Illustration

BCC0F94

Name: BCC0F94
Brand: Balluff
SKU: BCC0F94
Price: 347.25 CNY
Availability: OutOfStock

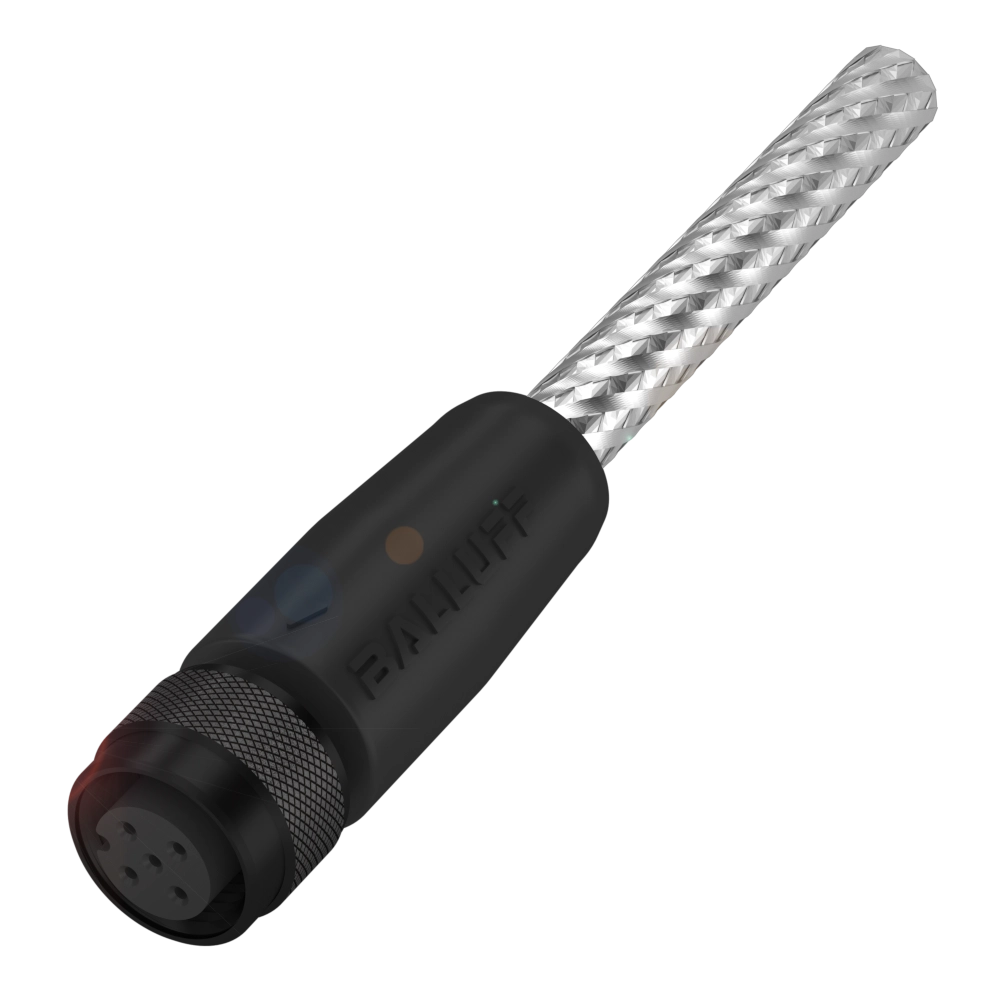

BCC W415-0000-1A-003-MW8434-050

Heavy duty cables

Connection

M12x1-Female, straight, 5-pin, A-coded

Switching output

Complementary

Cable

PUR black, 5 m

Number of conductors

Conductor cross-section

0.34 mm²

Do you have any questions about the product?

		Alternative	Further alternative

	BCC0F94 BCC W415-0000-1A-003-MW8434-050 347.25 CNY	BCC0F96 BCC W425-0000-1A-003-MW8434-050 347.25 CNY	BCC0F93 BCC W415-0000-1A-003-MW8434-030 264.38 CNY
Connection	M12x1-Female, straight, 5-pin, A-coded	M12x1-Female, angled, 5-pin, A-coded	M12x1-Female, straight, 5-pin, A-coded
Switching output	Complementary	Complementary	Complementary
Cable	PUR black, 5 m	PUR black, 5 m	PUR black, 3 m
Number of conductors	4	4	4
Conductor cross-section	0.34 mm²	0.34 mm²	0.34 mm²
Cable temperature, fixed routing	-50...90 °C	-50...90 °C	-50...90 °C
Cable temperature, flexible routing	-25...90 °C	-25...90 °C	-25...90 °C
Operating voltage Ub	250 VDC / 250 VAC	250 VDC / 250 VAC	250 VDC / 250 VAC
Rated current (40 °C)	4.0 A	4.0 A	4.0 A
IP rating	IP65	IP65	IP65
Approval/Conformity	CE cULus WEEE	CE cULus WEEE	CE cULus WEEE
