Field attachables
Connection

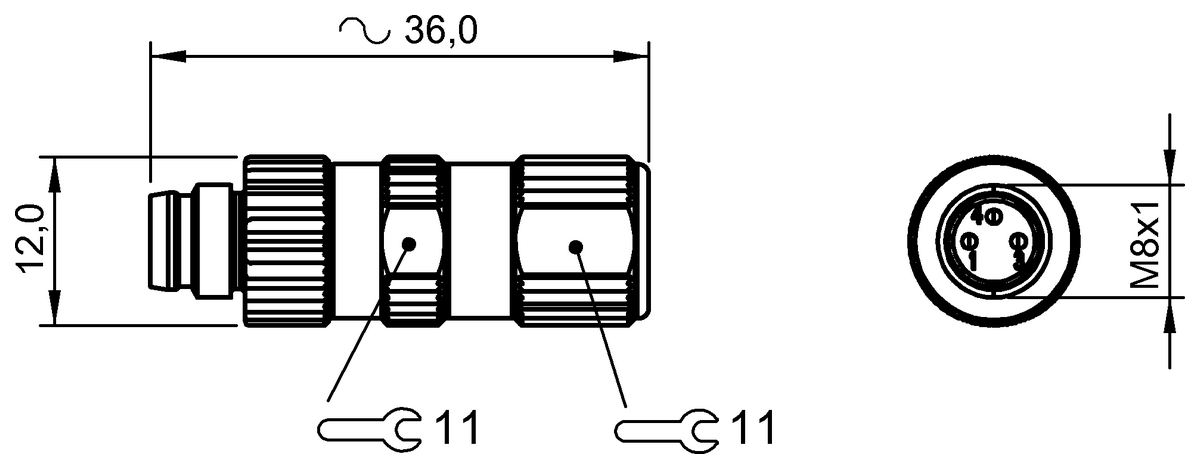

M8x1-Male, straight, 3-pin, A-coded
Number of connectable contacts
3
Connection cross-section
0.14...0.38 mm²
Type of wire mounting
Piercing
Cable diameter D
3...5 mm
Recommended successor products
BCC02HE
Field attachables
BKS-S113-RT13
Estimated vailability
How does the alternative product differ from the discontinued one?
Do you have any questions about the product?
This product page contains information for China – Balluff Automation (Shanghai) Co., Ltd
Alternative products
|
Discontinued
|
Recommended alternative
|
|
|
|
|
|
BCC09EWBCC M333-0000-20-000-22X334-000107.40 CNY |
BCC02HEBKS-S113-RT13107.40 CNY |
|
| Connection | M8x1-Male, straight, 3-pin, A-coded | M8x1-Male, straight, 3-pin, A-coded |
|---|---|---|
| Number of connectable contacts | 3 | 3 |
| Connection cross-section | 0.14...0.38 mm² | 0.14...0.34 mm² |
| Type of wire mounting | Piercing | IDC |
| Cable diameter D | 3...5 mm | 2.5...5.4 mm |
| Operating voltage Ub | 60 VDC / 60 VAC | 32 VDC / 32 VAC |
| Rated current (40 °C) | 4.0 A | 4.0 A |
| IP rating | IP67 | IP67 |
| Ambient temperature | -25...85 °C | -40...85 °C |
| Approval/Conformity | WEEE |
cURus WEEE |
