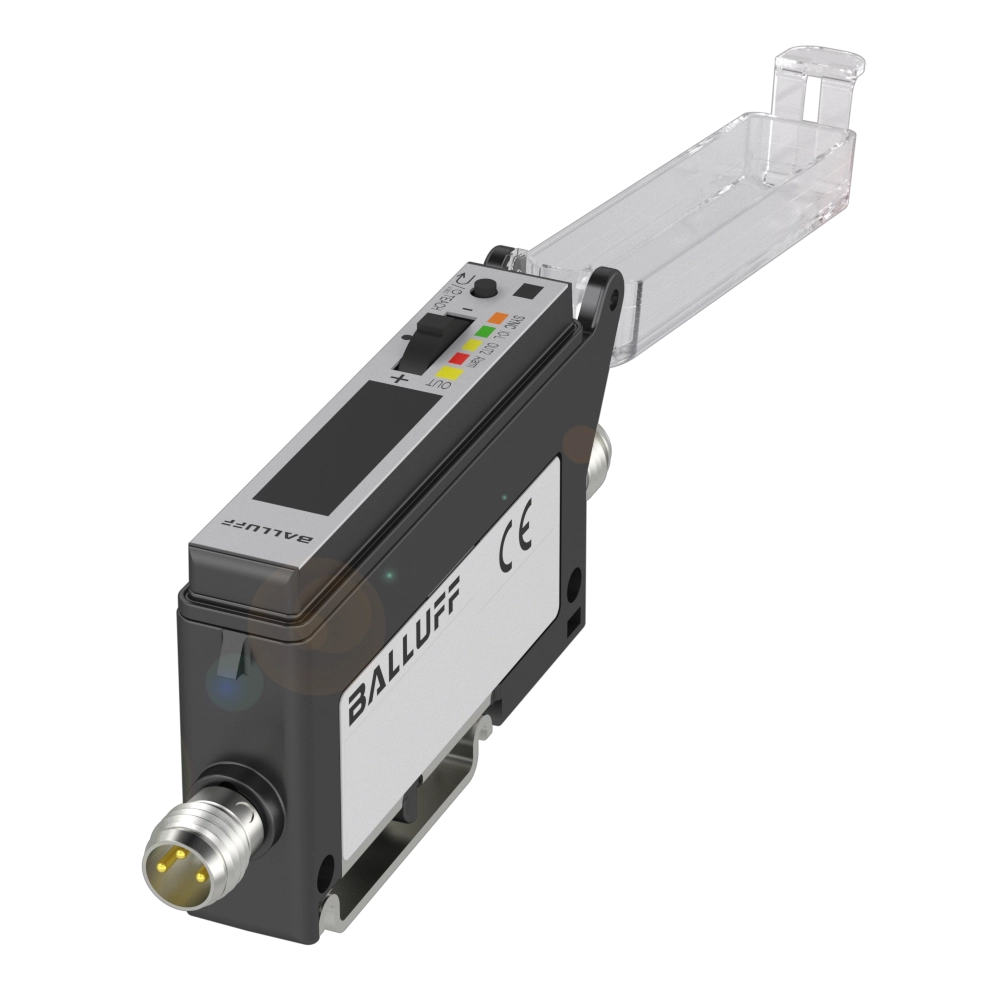

Amplifiers for optical sensor heads
Series
SA-OH

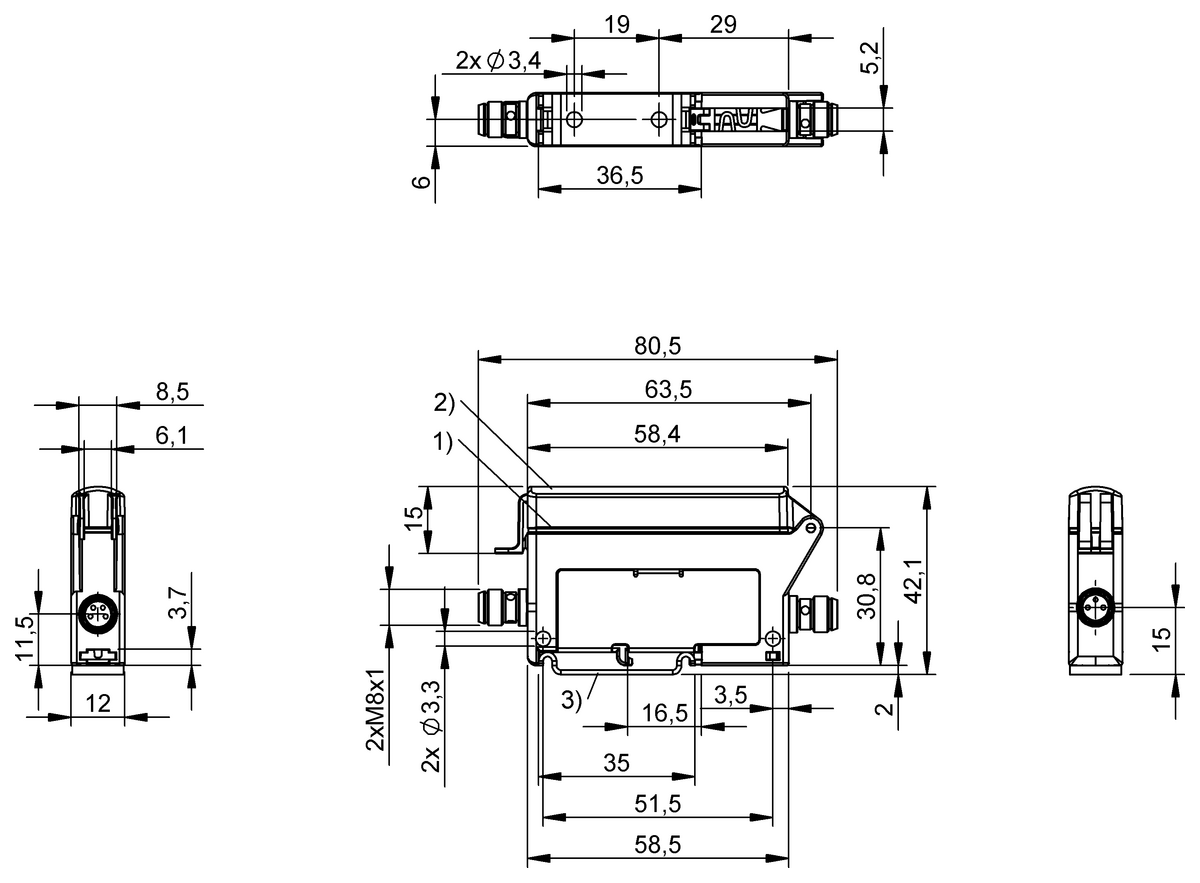

Dimension
12 x 40.1 x 80.5 mm
Interface
IO-Link: 1.1
2x PNP/NPN/push-pull: NO/NC
2x PNP/NPN/push-pull: NO/NC
Principle of operation
Signal amplifier
Principle of optical operation
depends on sensor head
Do you have any questions about the product?
Get in touch with us.
This product page contains information for China – Balluff Automation (Shanghai) Co., Ltd
Alternative products
|
|
Alternative
|
|
|
|
|
|
| BAE SA-OH-059-YI-S75G | BAE SA-OH-059-YI-DP02 | |
|
2,307.53 CNY
List price
|
2,307.53 CNY
List price
|
|
| Series | SA-OH | SA-OH |
|---|---|---|
| Dimension | 12 x 40.1 x 80.5 mm | 15 x 40.1 x 77.3 mm |
| Interface |
IO-Link: 1.1 2x PNP/NPN/push-pull: NO/NC |
IO-Link: 1.1 2x PNP/NPN/push-pull: NO/NC |
| Principle of operation | Signal amplifier | - |
| Principle of optical operation | depends on sensor head | - |
| Range | depends on sensor head | - |
| Connection | Connector, M8x1-Male, 4-pin | Cable, 2 m, PUR |
| Housing material |
PC PA 12 |
PC PA 12 |
| Mounting part |
DIN EN-50045 rail 15 mm DIN EN-50022 rail 35 mm Screw M3 (2x) |
- |
| Approval/Conformity |
CE WEEE cULus UKCA |
CE WEEE cULus UKCA |
| Display | - |
OLED Display supply voltage - LED green Output 1 active - LED yellow Output 2 active - LED yellow Alarm function - LED red Sync - LED orange |
| Setting | - |
Auto-Synch Contrast of the OLED display Counter mode Delay time Dynamic function External teach function Factory setting (Reset) IO-Link Light-on/dark-on On-/off delay SIO mode/IO-Link mode Window function/standard switching function Teach stat./dyn./man. Teach 1-Point/2-Point/dyn. Synchronization on/off Sensitivity (switch point) Read direction of the OLED display Gain Hysteresis |
| Adjuster | - |
Configuration via IO-Link button |
| Operating voltage Ub | - | 15...30 VDC |
